Vertical fuel (gas) steam boiler

產品特點介紹 Features of the product introduction
    現今中小規模企業發展迅猛，而可供客戶選擇的供熱供暖設備的研發相對滯后，針對這一客戶群體的特性，金能研發出產汽高效的蒸汽鍋爐。
    立式火管式結構，出力為二回程，燃燒器側置，高溫煙氣由爐膛進入一管束，1800折返進入第二管束，熱量被吸收后經煙道排入大氣。
    優點：
    1. 火管內插擾流子，減緩煙氣流速，提高熱效率。
    2. 煙氣在火管內流動，相對LSS式貫流式鍋爐，水容量增大，對負荷適應性強。
    3. 底部設置可開啟的清灰口，鍋爐頂蓋可打開，便于清理灰垢，延長使用壽命。
    該鍋爐設有自動點火、熄火保護、負荷調節、高低水位控制、超溫、超壓保護、密碼保護、斷電后吹掃和燃燒檢測保護系統。鍋爐一次儀表、閥門選擇知名品牌。

        Today's small and medium-sized enterprise development rapidly, and for customers to choose heating heating equipment research and development relative lag, according to the characteristics of the customer group, research and development of gold can produce steam and efficient steam boiler.
        Vertical fire tube type structure, the output of two return, burner offset by the high temperature flue gas furnace into a bundle, 1800 turn back into a second, after the quantity of heat is absorbed by the flue discharge into the atmosphere.
        Advantage:
        1.The fire tube inserted disturbed flow, reduce flue gas flow rate, increase thermal efficiency
        2.Flue gas flow in the fire tube, relative LSS type tubular boiler, water capacity, strong adaptability to load
        3.Clear grey cast, which can be opened, set at the bottom of the boiler can open the lid, easy to clean up gray scale, prolong service life.
        The boiler is equipped with automatic ignition, flame-out protection, load adjustment, high and low water level control, overtemperature and overpressure protection, password protection, purging and combustion test protection system when the power is cut off. Boiler is a meter, valve choose well-known trademark.

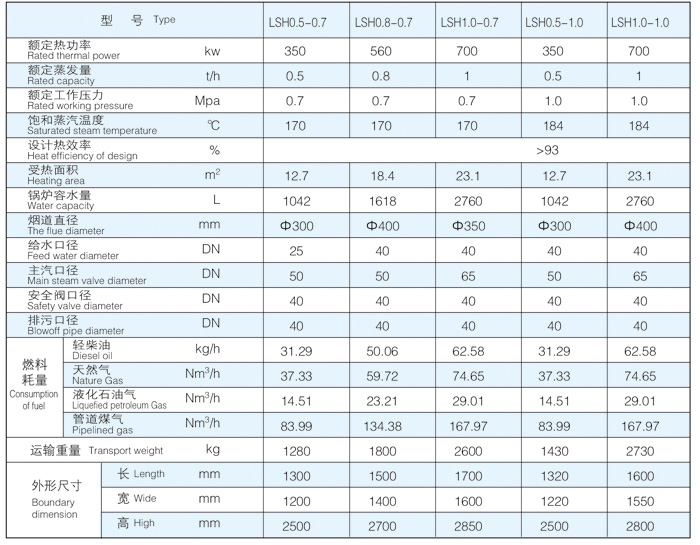

技術參數 Technical information

注：*本公司不斷追求技術創新及產品改進，產品的規格、技術參數及外型如有改動恕不另行通知。

PS: Our company always improve the products, if something is change in a hurry, we can't show it in our catalogue, thanks for your understanding.

安裝示意圖 Installation Instruction
